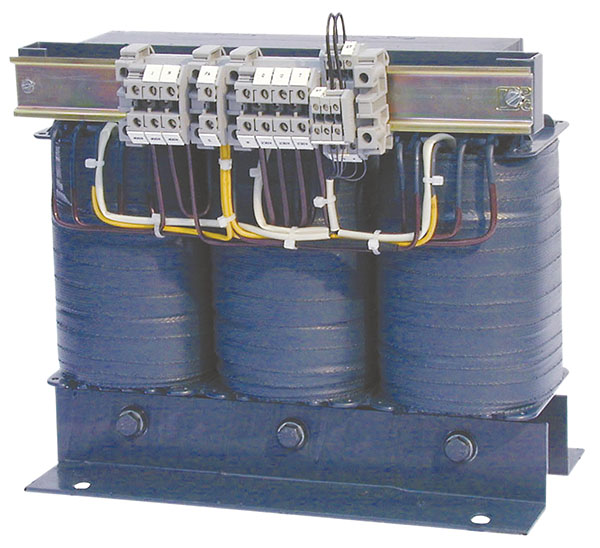

Isolating transformer DS0107

The transformers of the DS0107 series have reinforced insulation and comply with the requirements of IEC 61558-1 / DIN EN 61558-1 (VDE 0570-1) and IEC 61558-2-15 DIN EN 61558-2-15 (VDE 0570-2-15).

In addition, the transformers comply with the requirements of IEC 60364-7-710 / DIN VDE 0100-710 (VDE 0100-710) for IT systems in medical locations. The windings are galvanically isolated. In order to minimize electrical interferences, an electrostatic screen is installed between the primary and secondary winding the lead out of which is connected to an insulated terminal for connection to the equipotential bonding.

The fixing angles are isolated from the transformer core in order to guarantee an isolated installation to comply with the requirements of DIN VDE 0100-710 (VDE 0100-710): 2002-11, para 710.512.1.6.2).

The transformers are available for horizontal and vertical installation. Protection against corrosion is guaranteed by a complete resin impregnation.
The transformers are designed for use in dry locations. Transformers of the SK2 series are completely encapsulated and fulfil the requirements of protection class II.

Questions? Contact us!

The transformers of the DS0107 series have reinforced insulation and comply with the requirements of IEC 61558-1 / DIN EN 61558-1 (VDE 0570-1) and IEC 61558-2-15 DIN EN 61558-2-15 (VDE 0570-2-15).

In addition, the transformers comply with the requirements of IEC 60364-7-710 / DIN VDE 0100-710 (VDE 0100-710) for IT systems in medical locations. The windings are galvanically isolated. In order to minimize electrical interferences, an electrostatic screen is installed between the primary and secondary winding the lead out of which is connected to an insulated terminal for connection to the equipotential bonding.

The fixing angles are isolated from the transformer core in order to guarantee an isolated installation to comply with the requirements of DIN VDE 0100-710 (VDE 0100-710): 2002-11, para 710.512.1.6.2).

The transformers are available for horizontal and vertical installation. Protection against corrosion is guaranteed by a complete resin impregnation.
The transformers are designed for use in dry locations. Transformers of the SK2 series are completely encapsulated and fulfil the requirements of protection class II.

Questions? Contact us!

Features

Built-in temperature sensors acc. to DIN 44081 (120 °C)
Screen winding with brought-out insulated connection terminal
Insulated mounting angles
Degree of protection IP00 (construction type: open)
Degree of protection IP23 (incl. enclosure)
Protection class I
Protection class II (option: completely encapsulated version)

Reinforced insulation
Classification of insulation ta40/B
Connections: screw terminals
Noise level < 35 dB (A)(no-load and nominal load)
Vector group: Yyn O

Isolating transformer DS0107 Variant(s)

Ordering information, Dimensions, Weight

Type	A	B	C	D	E	F	G	Cu weight	Weight	Art. No.
DS0107/2000	300 mm	200 mm	270 mm	240 mm	160 mm	130 mm	11 mm	16 kg	34 kg	B924694
DS0107/3150	360 mm	210 mm	325 mm	310 mm	170 mm	135 mm	11 mm	28 kg	63 kg	B924106
DS0107/4000	360 mm	225 mm	325 mm	310 mm	185 mm	150 mm	11 mm	29 kg	70 kg	B924121
DS0107/5000	360 mm	240 mm	325 mm	310 mm	200 mm	165 mm	11 mm	31 kg	77 kg	B924112
DS0107/6300	420 mm	230 mm	370 mm	370 mm	200 mm	160 mm	11 mm	48 kg	97 kg	B924107
DS0107/8000	420 mm	245 mm	370 mm	370 mm	215 mm	175 mm	11 mm	51 kg	107 kg	B924628
DS0107/10000	420 mm	260 mm	370 mm	370 mm	230 mm	190 mm	11 mm	59 kg	130 kg	B924672
DS0107/2000K	300 mm		310 mm	240 mm	162 mm	130 mm	11 mm	16 kg	34 kg	B924687
DS0107/3150K	360 mm		360 mm	310 mm	170 mm	135 mm	11 mm	28 kg	63 kg	B924688
DS0107/4000K	360 mm		360 mm	310 mm	185 mm	150 mm	11 mm	29 kg	70 kg	B924689
DS0107/5000K	360 mm		360 mm	310 mm	200 mm	165 mm	11 mm	31 kg	77 kg	B924690
DS0107/6300K	420 mm		420 mm	370 mm	200 mm	160 mm	11 mm	48 kg	97 kg	B924691
DS0107/8000K	420 mm		420 mm	370 mm	215 mm	175 mm	11 mm	51 kg	107 kg	B924692
DS0107/10000K	420 mm		420 mm	370 mm	230 mm	190 mm	11 mm	59 kg	130 kg	B924693
DS0107/2000LG	330 mm	195 mm	265 mm	298 mm		200 mm	7 mm	16 kg	34 kg	B924695
DS0107/3150LG	394 mm	198 mm	310 mm	358 mm		240 mm	9 mm	28 kg	63 kg	B924658
DS0107/4000LG	394 mm	214 mm	310 mm	358 mm		240 mm	9 mm	29 kg	70 kg	B924659
DS0107/5000LG	394 mm	228 mm	310 mm	358 mm		240 mm	9 mm	31 kg	77 kg	B924660
DS0107/6300LG	452 mm	212 mm	360 mm	408 mm		280 mm	12 mm	48 kg	97 kg	B924661
DS0107/8000LG	452 mm	227 mm	360 mm	408 mm		280 mm	12 mm	51 kg	107 kg	B924662
DS0107/10000LG	452 mm	250 mm	360 mm	408 mm		280 mm	12 mm	59 kg	130 kg	B924679
DS0107/2000SK2	410 mm	190 mm	400 mm	380 mm	330 mm	125 mm	11 mm	16 kg	49 kg	B924696
DS0107/3150SK2	520 mm	190 mm	450 mm	490 mm	390 mm	135 mm	11 mm	28 kg	75 kg	B924122
DS0107/4000SK2	520 mm	190 mm	450 mm	490 mm	390 mm	135 mm	11 mm	29 kg	80 kg	B924123
DS0107/5000SK2	520 mm	200 mm	450 mm	490 mm	390 mm	150 mm	11 mm	31 kg	86 kg	B924124
DS0107/6300SK2	520 mm	200 mm	500 mm	490 mm	450 mm	150 mm	11 mm	48 kg	107 kg	B924125
DS0107/8000SK2	520 mm	215 mm	500 mm	490 mm	450 mm	175 mm	11 mm	51 kg	130 kg	B924126
DS0107/10000SK2	520 mm	230 mm	500 mm	490 mm	450 mm	175 mm	11 mm	59 kg	155 kg	B924678
