COMTRAXX® CP9xx Series
- Easy integration of all Bender and third-party devices
- Access to COMTRAXX Webserver
- Multiple communications protocols
- Easy to use touchscreen interface
- Visual and acoustic notification in the event of an alarm
- Digital inputs, relay control, for future expandability
- Available in surface or flush mounting

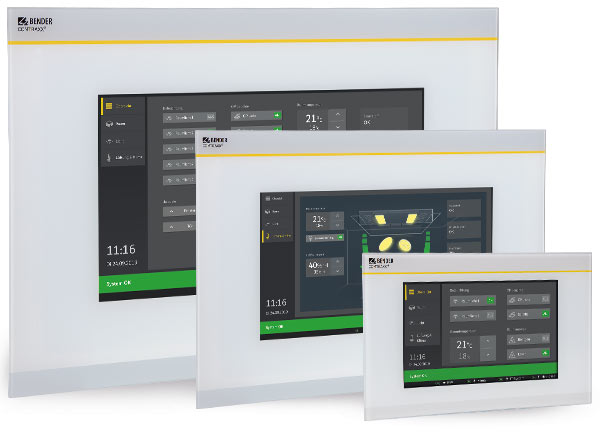

- Multiple display sizes available (7", 15.6", 24")
Indicator and control panels play a decisive role at the interfaces between man and machine. Their task is to provide visual and acoustic alarms and to convert information from the system into comprehensible operating and handling instructions. This is especially true when critical operating situations are imminent.

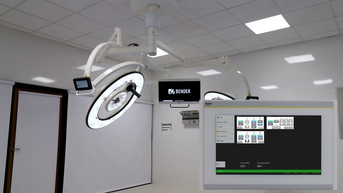

The CP9xx Control Panel offers the user a solution that meets the requirements of modern medical areas as well as those of industrial and purpose-built buildings.
- Easy integration of all Bender and third-party devices
- Access to COMTRAXX Webserver
- Multiple communications protocols
- Easy to use touchscreen interface
- Visual and acoustic notification in the event of an alarm
- Digital inputs, relay control, for future expandability
- Available in surface or flush mounting
- Multiple display sizes available (7", 15.6", 24")
Indicator and control panels play a decisive role at the interfaces between man and machine. Their task is to provide visual and acoustic alarms and to convert information from the system into comprehensible operating and handling instructions. This is especially true when critical operating situations are imminent.
The CP9xx Control Panel offers the user a solution that meets the requirements of modern medical areas as well as those of industrial and purpose-built buildings.
Features
- Easy to clean and disinfect, protection class IP54
- Screwless mounted front panel
- Customizable User Interface for a wide variety of setups.
- Easy integration of all Bender and third party devices
- Access to COMTRAXX Webserver
- Multiple communications protocols (BMS, BCOM, Modbus, Ethernet)
- Easy to use, touch screen interface
- Visual and acoustic notification in the event of an alarm
- Digital inputs, relay control, for future expandability
- Available in surface or flush mounting
- Different display sizes available (7", 15.6", 24")
Applications
Monitoring, operation and display of:
- Medical isolated power system
- Supply systems for medical gases
- Ventilation and air conditioning systems
- Room lighting
- Surgical lights
- UPS system status
COMTRAXX® CP9xx Series Variant(s)
Complete Devices
| Type | Display Size | Power Supply | Devices Dimensions (W x H x D) | Weight | Display Unit (glass, tempered) | Art.* |
|---|---|---|---|---|---|---|
| CP907 | 7" (17,6 cm) | DC 24 V, < 15 W; alternatively PoE possible | 226 x 144 x 78 mm | 1.1 kg | white | B95061080 |
| CP907 without Flush-mounting enclosure | 7" (17,6 cm) | DC 24 V, < 15 W; alternatively PoE possible | 226 x 144 x 78 mm | 0.9 kg | white | B95061093 |
| CP915 | 15,6" (38,6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6,1 kg | white | B95061081 |
| CP915 | 15,6" (38,6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6,1 kg | grey | B95061085 |
| CP924 | 24" (61,0 cm) | AC 100…240 V, < 55 W | 654 x 441 x 100 mm | 9,1 kg | white | B95061083 |
| CP924 | 24" (61,0 cm) | AC 100…240 V, < 55 W | 654 x 441 x 100 mm | 9,1 kg | grey | B95061084 |
* In the offer phase the Art. No. may differ.
Customised solution for new builds and retrofits on request.
Scope of delivery: display unit, flush-mounting enclosure incl. mounting plate with electronics, CP9xx connecting cable and plug connector kit.
Components separately
| Device series | Type | Art. No.* |
|---|---|---|
| CP907 | Flush-mounting enclosure | B95100140 |
| CP915 | Display unit white Display unit grey | B95061112 B95061113 |
| CP924 | Display unit white Display unit grey | B95061115 B95061116 |
* In the offer phase the Art. No. may differ.
Optional Accessories for COMTRAXX® CP9xx Series
| Description | Art.-Nr. |
|---|---|
| CP907 surface-mounting enclosure | B95061915 |
| CP915 surface-mounting enclosure | B22301077 |
| CP924 surface-mounting enclosure | B22301078 |
| CP9xx replacement plug connector kit | B95061910 |
| CP9xx suction lifter * | B95061911 |
* The suction lifter is needed to remove the display.
For version CP915 and CP924
